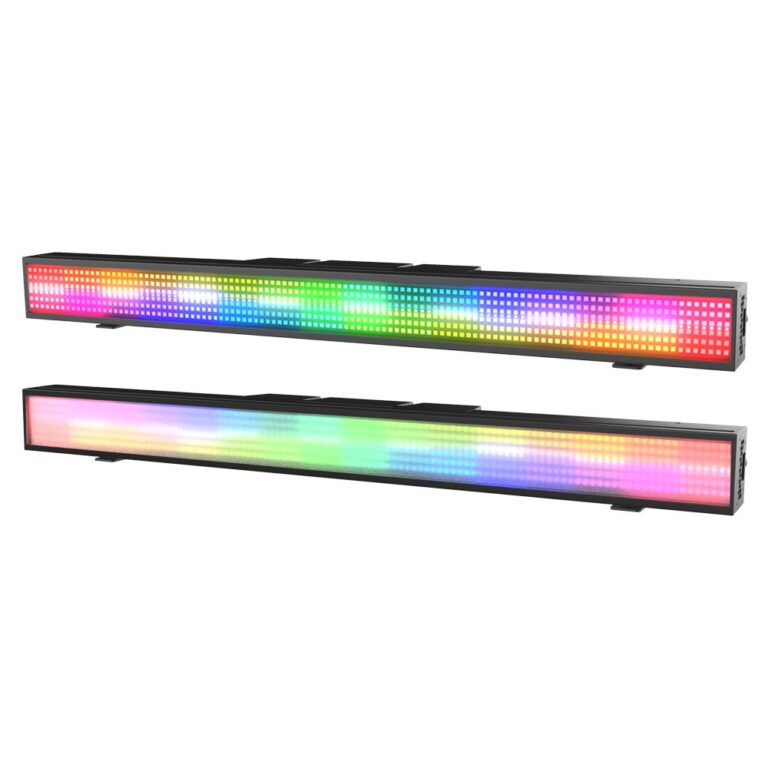

Acme Pixel Line IP is a robust, IP66-rated LED strip light engineered for both indoor and outdoor applications, offering exceptional versatility and performance. It features 672 RGB LEDs divided into 32 controllable sections and 112 cool white LEDs divided into 16 sections, delivering a total lumen output of 21,900 lumens with beam angles of 101° (RGB) and 108° (CW) . The fixture incorporates Acme’s patented Smart Glass Technology, allowing it to switch between clear and frosted output modes via DMX control, eliminating the need for external diffusion filters . With multiple DMX channel modes, preprogrammed effects, and a tool-less connection system for seamless side-by-side mounting, the Pixel Line IP is ideal for dynamic lighting designs in concerts, architectural installations, and live events .

• Total Lumens: 21,900
• Control Channels: 7/15/17/21/33/39/35/38/70/112/117
• Source: 672 0.5W RGB LEDs / 112 3W CW LEDs
